Vertical Shaft Impact crusher
Vertical shaft impact crusher in the mechanism of sand has the unique advantages such as high yield, good grain shape, high efficiency, low energy consumption, Big crushing ratio.
Vertical shaft impact crusher in the mechanism of sand has the unique advantages such as high yield, good grain shape, high efficiency, low energy consumption, Big crushing ratio.
The series impact crusher is also the essential device for producing high performance concrete (above C30 ) aggregate(stone), after shaping by this machine, the final product will not exceed 5%, and it can highly meet the technical requirements for aggregate used in high way, high-performance concrete( C30-C80) used in high-rise buildings.
Model | VSI 7611 | VSl 8518 | VS1 9526 | VSI 1140 | VSI 1145 | VSI 1150 | |
| Processing Capacity (t/h) | Cascading and Central Feeding | 80-180 | 140-260 | 200-380 | 300-520 | 350-610 | 360-650 |
| Full Central Feeding | 40-90 | 70-130 | 100-190 | 160-260 | 180-355 | 190-365 | |
| Maximum Feed Size (mm) | Soft Material | 35 | 40 | 45 | 50 | 50 | 50 |
| Hard Material | 30 | 35 | 40 | 40 | 45 | 45 | |
| Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1150-1300 | 1150-1300 | 1150-1300 | |
| Motor Power (kW) | 4P 110 | 4P180 | 4P264 | 4P 400 | 4P 440 | 4P500 | |
| Overall Dimensions (Length×Width×Height, mm) | 4100x2250x2300 | 4160x2320x2900 | 4560x2450x2830 | 5500x2700x3100 | 5500x2700x3100 | 5500x2700x3100 | |
This series of sand -making machines ( vertical shaft impact crusher) have wide range of uses; its performance has reached the international leading level in sand-making equipment lines. It is the most effective, practical and reliable sand-making equipment. The sand -making machine is particularly applicable to the production of building sand(bluestone, limestone, bank gravel, rocks, granite and many kinds of raw materials to make building sand), abrasive materials, refractory, cement, sand, emery, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate and many kinds of hard, brittle materials fine crushing and secondary crushing.It is an high efficient and energy-saving equipment for sand and stone crushing. It can save 50% energy than the traditional machine. It is the most advanced sand - making equipment in the world.

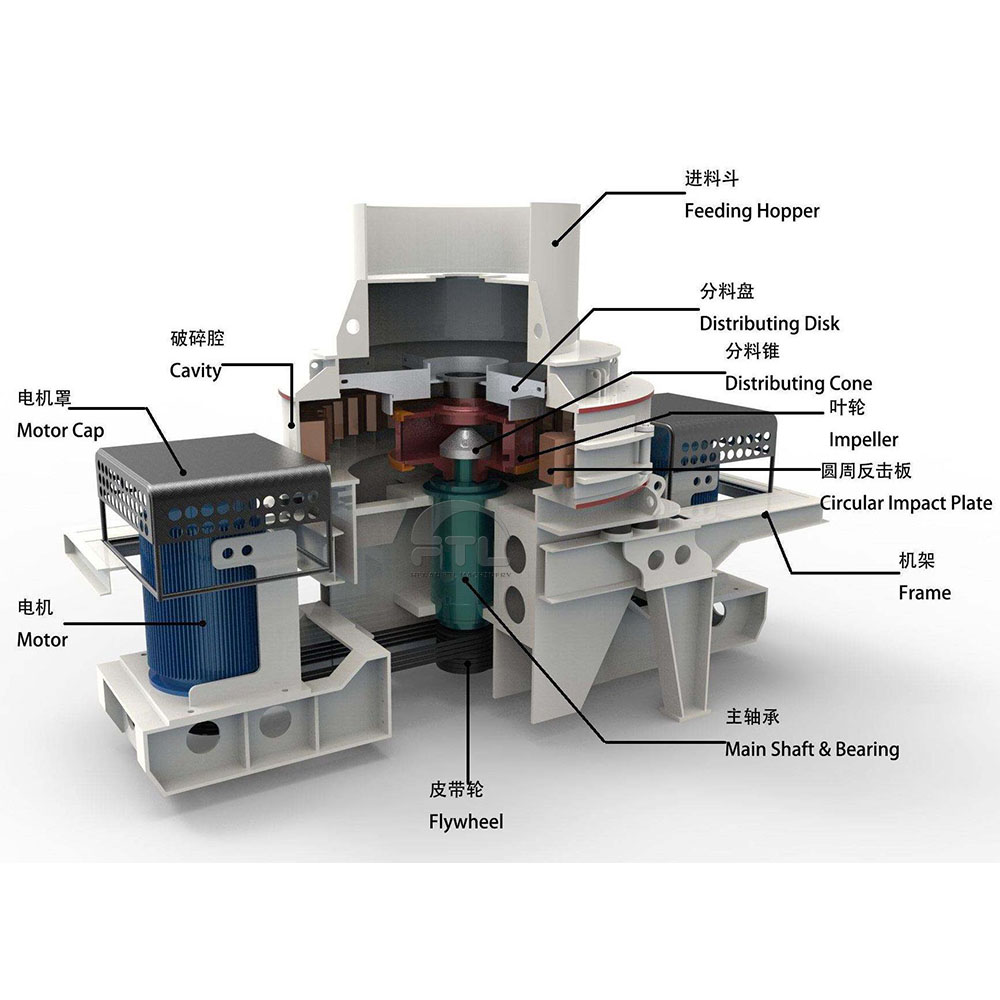

Working Principle:The materials straightly fall into high-speed rotating impeller turnplate from the top of the machine, under the effects of high-speed centrifugal force, have high-speed crash and high-density crush with the target stone which flowing around the impeller in umbrella form, after mutual impaction , they will form eddying motion between the turnplate and the machine case, then cause a number of mutual impacts, friction, crushing until they are crushed into the required size.
VSI PC vertical shaft impact crusher Fearures:
1.This sand-making machine is a newly-developed secondary and fine stock crushing machine currently, it is now the world's widely used sand-making machine that can replace the cone crusher,double-roller crusher and ball mill sand making models.
2. This machine possesses novel structure, unique, smooth operation.
3. Small energy consumption, high productivity, big crushing ratio.
4. The machine has small size, easy to operate, easy to install and repair.
5. With shaping functions, products are cubic, large packing density.
6. In the manufacturing, stone materials can form protecting substrate, so that the body of the machine is not easy worn, and durable.
7. A small numbers of easy worn parts are made of strong worn-resistant materials; they possess small size, light weight, easy to change the equipped parts.
8. Operation noise is less than 75 decibels (db level) and dust pollution is light
